I. Introduction
In large-scale API 5L SSAW Steel Pipe for Water Transmission applications, whether for urban water supply systems, inter-regional water transfer projects, or industrial water circulation systems, the performance requirements for pipe materials have reached unprecedented levels.
The pipelines not only need to withstand long-term, stable high-pressure operation, but also must maintain structural integrity under complex geological conditions and possess corrosion resistance to ensure the safe service life of the entire water supply system for several cycles.
Especially in long-distance water transmission projects, pipelines often need to traverse undulating terrain, cope with varying soil properties, and experience drastic temperature fluctuations. These environmental factors pose stringent challenges to the circumferential stress and axial stability of the pipe materials.
Therefore, finding a pipe material that achieves a perfect balance between strength, flexibility, and life-cycle cost has become crucial for engineering decisions.

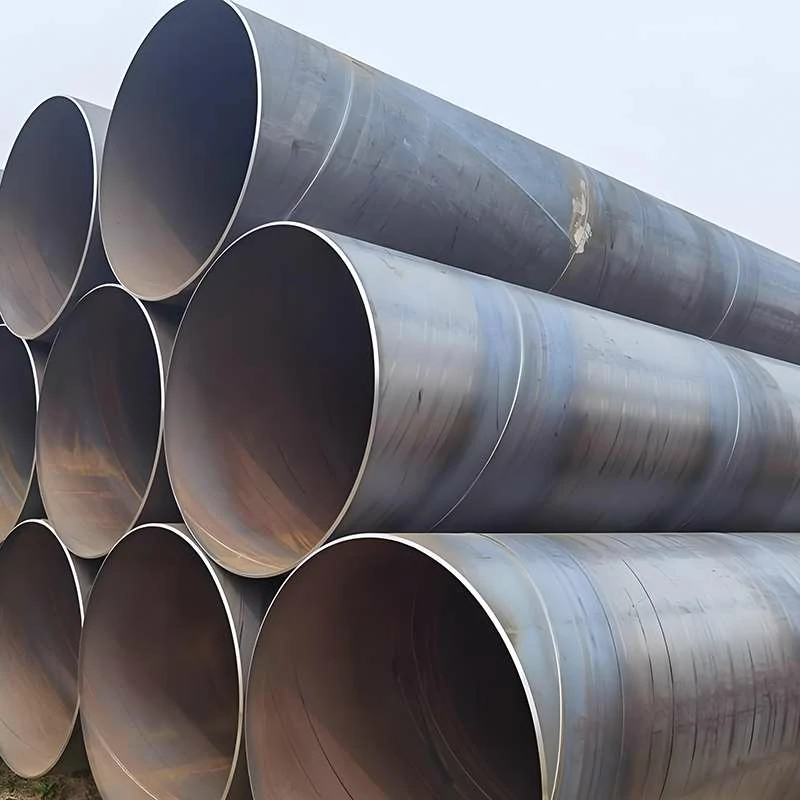

API 5L SSAW Pipe, with its unique spiral welding process, has become the mainstream solution for water transmission projects worldwide.
II. Why Choose API 5L Standard for Water Transmission Projects?
The API 5L standard was originally used in the oil and gas transportation sector, and its design requirements are far higher than those of ordinary water transmission standards. This means that when applied to water conservancy projects, it provides greater safety redundancy and more reliable performance assurance.
Firstly, API 5L has strict regulations on the chemical composition, mechanical properties, and manufacturing processes of materials, ensuring that the steel pipes maintain excellent tensile strength and toughness under high pressure. This is particularly important for water transmission systems that require long-term stable operation.
In practical projects, common steel grades include:
- Grade B: Suitable for conventional pressure water transmission projects
- X42 / X52: Suitable for medium pressure and long-distance water transmission
- X60: Suitable for high pressure or critical engineering sections
The selection of these steel grades not only affects the pipeline’s pressure-bearing capacity but also directly relates to the project’s safety factor. Adopting the API 5L standard is equivalent to adding a layer of “safety insurance” to the entire water transmission system.

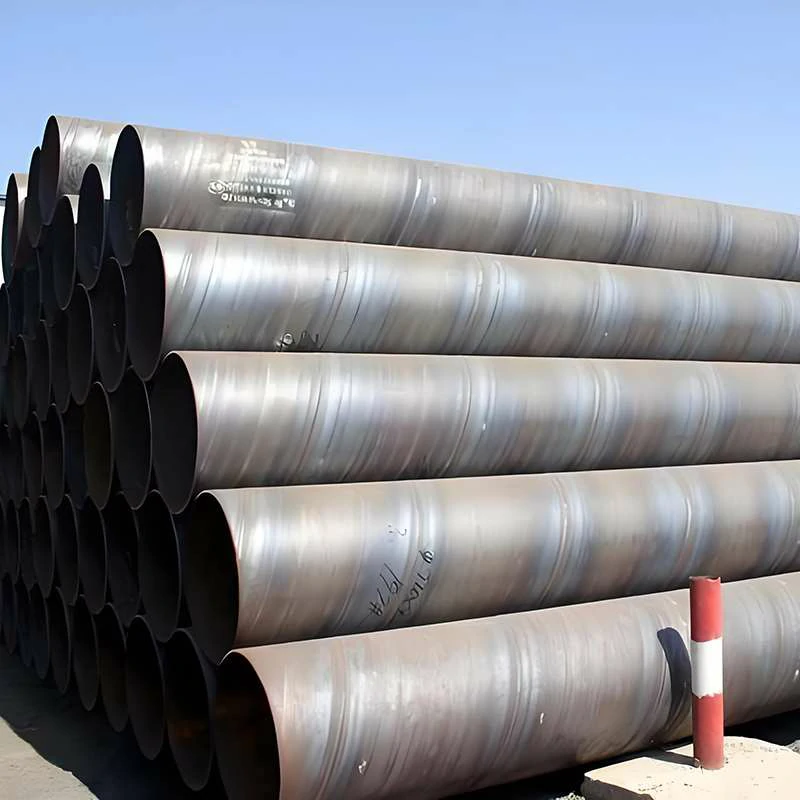

III. Technical Advantages of SSAW Spiral Welded Pipe

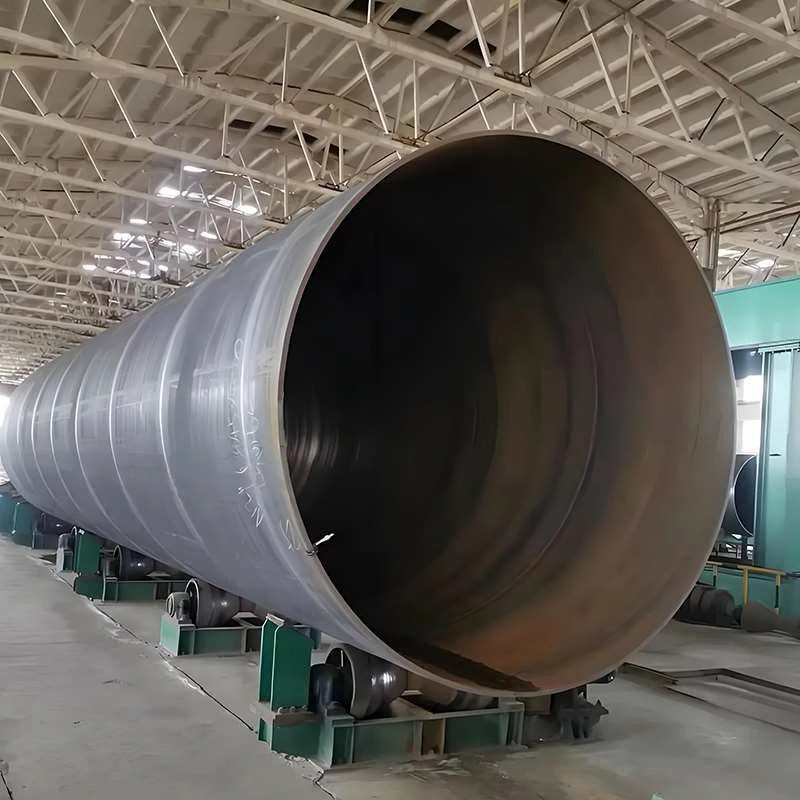

1. Strong Large-Diameter Manufacturing Capability
SSAW spiral welded pipe is formed by continuous rolling of steel coils. Different diameter pipes can be produced by adjusting the spiral angle. Therefore, compared to straight seam steel pipes, it has a natural advantage in large-diameter production, typically ranging from Φ219 mm to 3500 mm, or even larger.
This characteristic is particularly suitable for high-flow water transmission projects, effectively reducing the number of pipe connection points, thereby reducing construction difficulty and potential leakage risks.

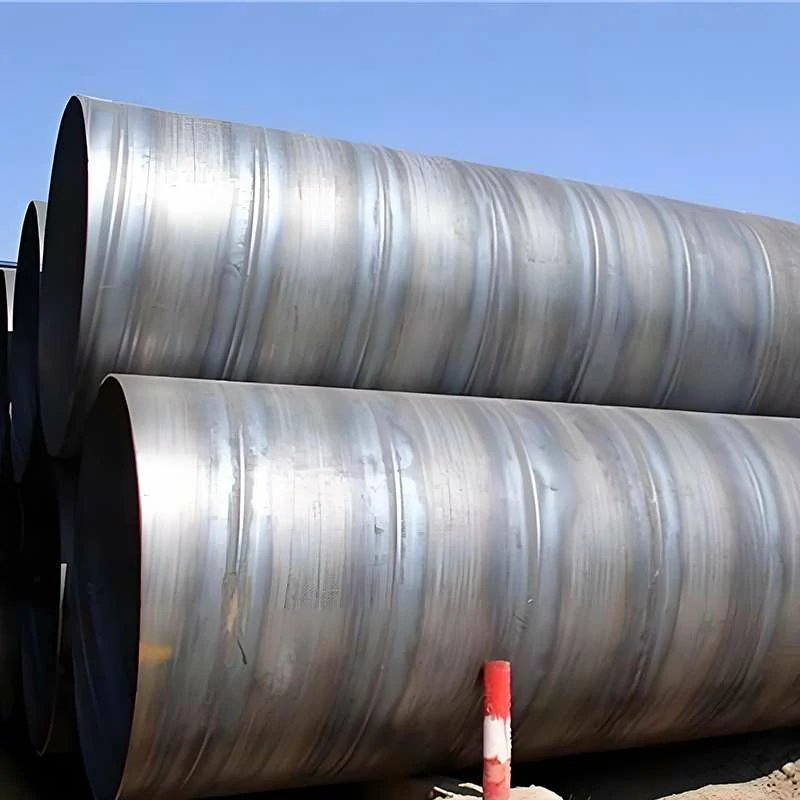

2. More Uniform Stress Distribution
The spiral weld seam is distributed in a spiral shape, ensuring that when the pipeline is subjected to internal pressure and external loads, the stress is not concentrated on a single straight line, but rather dispersed along the entire pipe body.
The benefits of this structural advantage include:
- Increased pressure resistance
- Reduced risk of stress concentration in weld seams
- Enhanced overall structural stability
This is crucial in water conveyance projects, especially under high pressure or complex conditions.
3. Enhanced Terrain Adaptability
In practical engineering projects, pipelines often need to traverse soft soil, mountains, rivers, and even earthquake zones. Due to its spiral structure, SSAW steel pipes possess a degree of flexibility, enabling them to better adapt to ground settlement or terrain changes.
In contrast, the more rigid straight-seam steel pipes are more prone to stress concentration problems in extreme terrains. Therefore, SSAW is more suitable for:
- Areas with uneven settlement
- Long-distance inter-regional water conveyance projects
- Areas with complex geological conditions
4. High Raw Material Utilization
SSAW steel pipes use hot-rolled steel coils as raw materials, rather than thick steel plates. This production method minimizes material waste and maximizes utilization.
The direct advantages include:
- Reduced production costs
- Increased production efficiency
- Better suitability for large-scale projects
This advantage is crucial for budget-sensitive large-scale water conveyance projects.
5. Significant Price-Performance Advantage
In the large-diameter range (especially > 1000 mm), SSAW steel pipes typically have a more significant price advantage compared to LSAW (straight seam submerged arc welded pipe).
Reasons include:
- Lower raw material costs
- Higher production efficiency
- Relatively smaller equipment investment
While meeting engineering technical requirements, SSAW steel pipes can effectively reduce overall project costs, making them the preferred option for most water transmission projects.
6. Strong Continuous Production Capacity
SSAW production lines typically employ continuous forming processes, enabling stable production over extended periods, making them particularly suitable for large-scale project orders.
The advantages include:
- More controllable delivery cycles
- Higher batch consistency
- Suitable for long-term project supply
This is especially important for large-scale water transmission projects requiring tens of thousands of tons of steel pipe.
7. High Specification Flexibility
SSAW steel pipes can be flexibly adjusted according to project requirements, including:
- Outer Diameter (OD)
- Wall Thickness (WT)
- Length (fixed length)
- Corrosion Protection System
This high degree of customization allows it to match different national standards and engineering requirements, adapting to diverse water transmission applications.
IV. Core Focus: Customized Corrosion Protection Solutions for Water Transmission Systems
For the API 5L SSAW Pipe for Water Transmission, the corrosion protection process is crucial to the success of the project.
1. Internal Corrosion Protection: Ensuring Water Quality and Delivery Efficiency
The internal coating must strike a balance between corrosion prevention and hygiene. For large-diameter SSAW steel pipes, we offer the following standard solutions:
Drinking Water Grade Liquid Epoxy Coating:
- Advantages: Extremely smooth surface, significantly reducing flow resistance (low roughness coefficient), thus reducing long-term pumping power costs.
- Safety: Meets international drinking water hygiene standards (such as NSF/ANSI 61 or WRAS), non-toxic and odorless.
Cement Mortar Lining:
- Advantages: Extremely low cost, utilizing the alkaline environment of cement to form a passivation protective layer on the inner wall of the steel pipe.
- Applications: Particularly suitable for ultra-large diameter municipal raw water delivery pipelines.
2. External Corrosion Protection: Resisting Harsh Soil Environments
The key to external corrosion protection is preventing electrochemical corrosion of steel pipes caused by soil pH, microorganisms, and underground currents.
3PE (3-Layer Polyethylene):
- Status: Currently the gold standard for global water and oil pipeline projects.
- Features: Combines the strong adhesion of the base epoxy powder with the strong mechanical damage resistance of the outer polyethylene layer. It has extremely high insulation resistance, making it the first choice for long-distance buried pipelines.
FBE Coating (Fusion Bonded Epoxy):
- Advantages: Single-layer structure with excellent adhesion and resistance to cathodic disbondment.
- Applications: Commonly used in areas with complex terrain, short construction sections, or extremely high environmental requirements.
Coal Tar Enamel:
- Current Status: Although extremely low cost, due to environmental restrictions, it is currently mostly used in non-potable water projects and industrial circulating water projects with extremely strict budget controls.
3. How to choose a suitable corrosion protection system?
| Engineering Environment | Recommended Solution (External / Internal) | Key Reasons |
|---|---|---|
| Long-distance potable water transmission pipelines | 3PE + Liquid Epoxy | Long service life, highest water quality safety, and excellent energy efficiency |
| Large municipal water supply networks | 3PE + Cement Mortar | Highly cost-effective, suitable for large-diameter pipelines |
| Temporary / short-term water transmission projects | Epoxy Coal Tar + Cement Mortar | Reduces initial construction costs |
V. Application Scenarios of SAW Steel Pipes in Water Transmission Projects
- Municipal Water Supply Systems
As the main water transmission pipelines in cities, SAW steel pipes can meet the requirements of large flow rates and high stability, making them a common choice for the main water transmission lines of waterworks. - Agricultural Irrigation and Water Diversion Projects
In inter-regional water diversion or reservoir connection projects, SAW steel pipes are widely used in long-distance water transmission projects due to their large diameter and economic advantages. - Industrial Circulating Water Systems
Power plants, chemical plants, and other industrial sectors have extremely high requirements for the stability of water circulation systems. SAW steel pipes can operate stably for long periods under complex operating conditions.
VI. Common testing standards for API 5L SSAW Pipe for Water Transmission
| Inspection Item | Testing Standard / Requirement |
|---|---|
| Chemical Composition Analysis | Complies with API 5L standard (e.g., C ≤ 0.26%, Mn ≤ 1.20% for Gr.B, P ≤ 0.030%, S ≤ 0.030%) |
| Tensile Strength | ≥ 415 MPa (Gr.B); X42 ≥ 415 MPa; X52 ≥ 460 MPa |
| Yield Strength | Gr.B ≥ 245 MPa; X42 ≥ 290 MPa; X52 ≥ 360 MPa |
| Elongation | ≥ 20% (calculated based on wall thickness and standard formula) |
| Impact Test (Charpy Impact Test) | PSL2 requirement: ≥ 27 J (at 0°C or -20°C depending on project requirements) |
| Hydrostatic Test | Test pressure = 2 × design pressure, or calculated per API 5L formula; no leakage or deformation |
| Non-Destructive Testing (NDT) | 100% weld inspection: Ultrasonic Testing (UT) + Radiographic Testing (RT); no cracks, lack of fusion, etc. |
| Weld Appearance Inspection | Smooth weld formation, no porosity, slag inclusion, or cracks; reinforcement height typically ≤ 3 mm |
| Dimensional Inspection (OD) | Outer diameter tolerance: ±1% (minimum ±0.5 mm) |
| Wall Thickness Inspection | Wall thickness tolerance: -12.5% / +15% |
| Length Inspection | Fixed length tolerance: ±50 mm (standard) |
| Pipe End Bevel | Bevel angle: 30° ± 5°; land thickness: 1.6 mm ± 0.8 mm |
| Ovality | ≤ 1% of outer diameter |
| Coating Thickness (External) | 3PE total thickness ≥ 2.5 mm (typically 2.5–4.0 mm) |
| FBE Coating Thickness | ≥ 300 μm (typically 300–500 μm) |
| Internal Coating (Epoxy) | ≥ 100–300 μm (higher for potable water grade) |
| Adhesion Test | ≥ 30 N/cm (3PE); no large-area peeling for FBE |
| Holiday Test (Spark Test) | No holidays/pinholes (test voltage approx. 25 kV, adjusted based on coating thickness) |
Usage Recommendations
In actual water transmission projects, it is recommended to focus on the following testing items:
- Hydrostatic testing + Non-destructive testing: Directly related to safety
- Internal coating testing: Affects water quality and service life
- External anti-corrosion thickness and adhesion: Determines the service life underground
