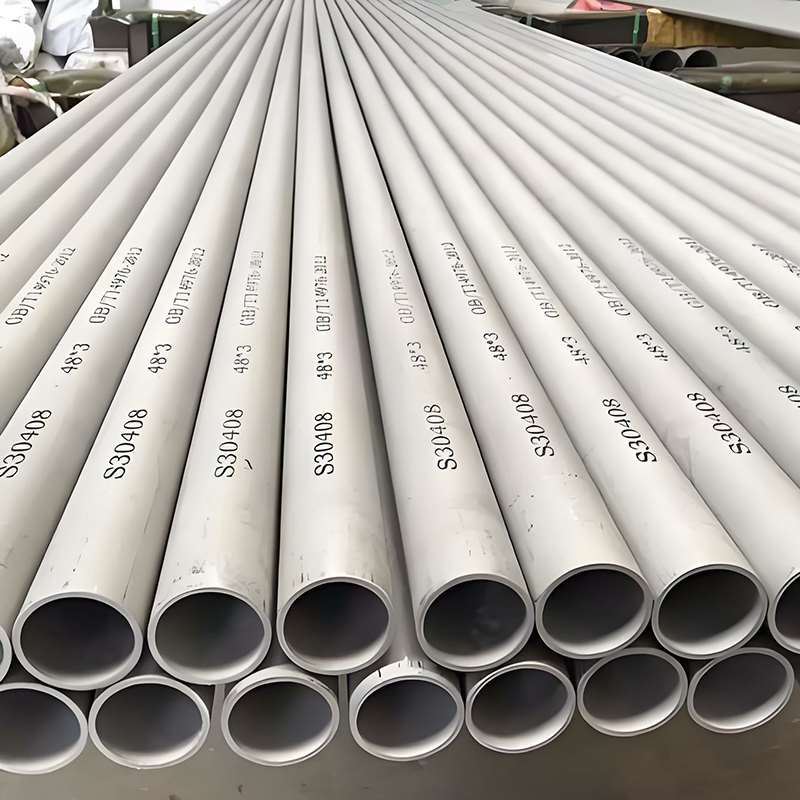

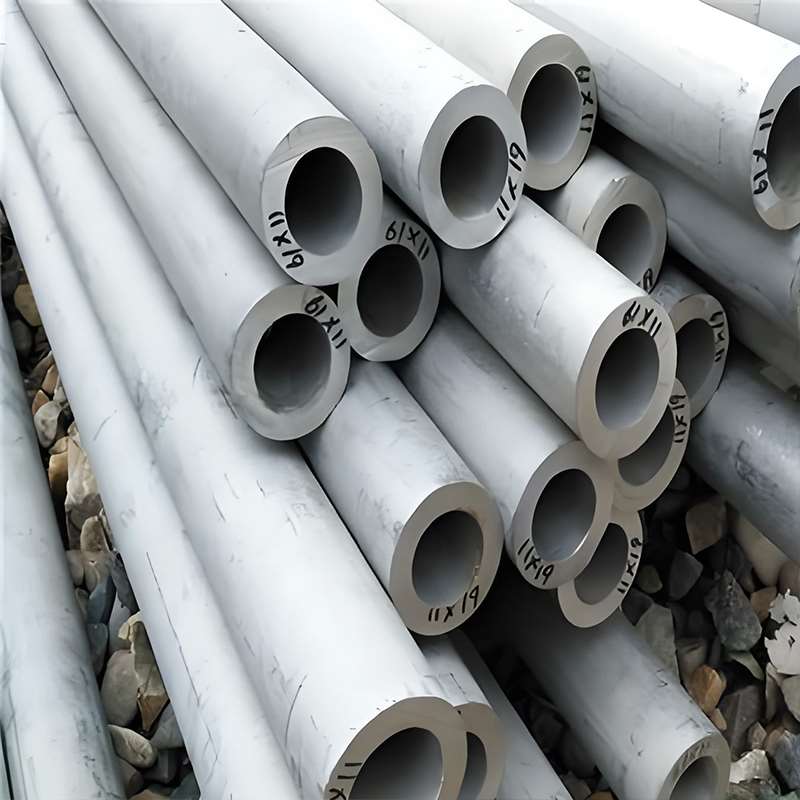

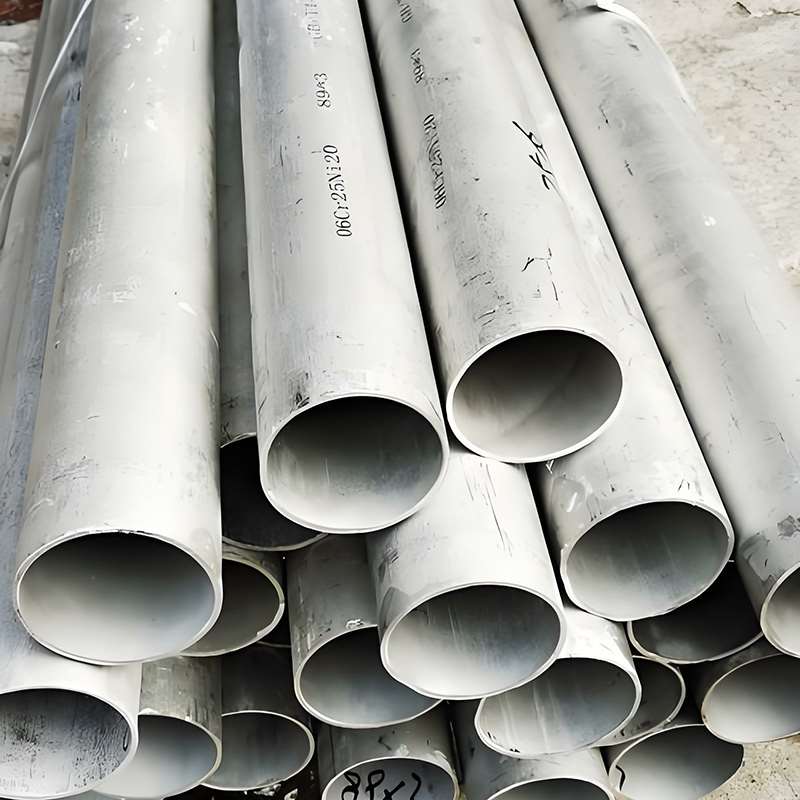

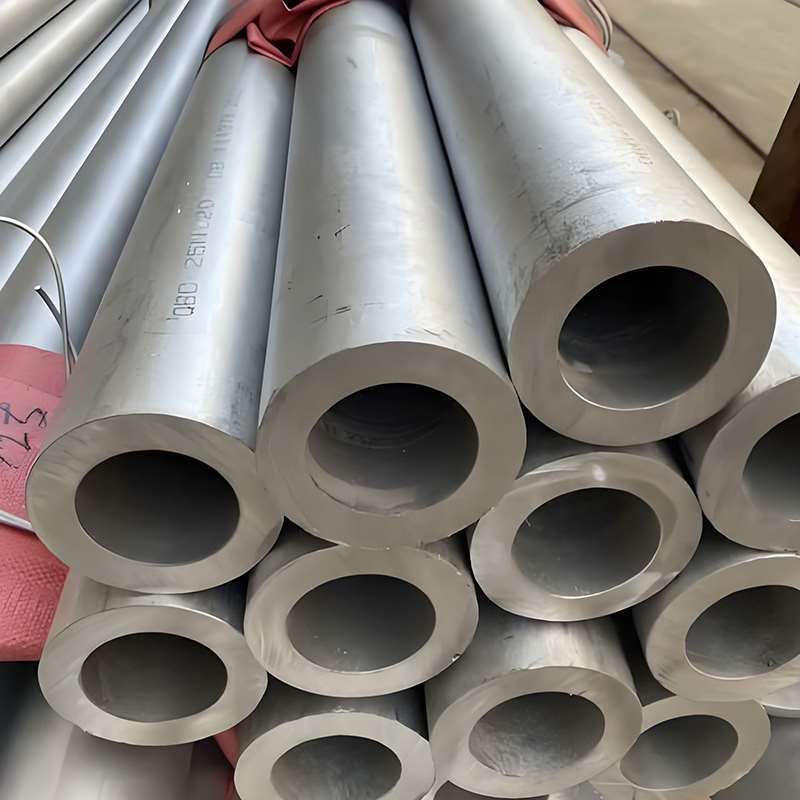

I. Overview of 316 Stainless Steel Seamless Tubing (for Food and Beverage Industry)
316 stainless steel seamless pipe is a high-quality austenitic stainless steel tubing manufactured using seamless drawing technology. It features uniform structure, high strength, and excellent corrosion resistance.
Compared to 304 stainless steel, 316 incorporates molybdenum to enhance corrosion resistance in chlorine- and salt-containing environments. It is particularly suitable for demanding sanitary and corrosion-resistant applications in the food, beverage, and dairy industries.
This tubing is suitable for liquid transfer pipelines, sanitary fluid systems, dairy and beverage production lines, pharmaceutical equipment, and heat exchanger connections, ensuring safe, hygienic, and long-term stable operation of media transport.
The tubing surface undergoes polishing or pickling treatment, meeting food hygiene standards while facilitating easy cleaning and maintenance. With excellent weldability and machinability, 316 stainless steel seamless tubing is widely adopted in the food and beverage industry as a reliable and efficient piping solution.
II. Common Standards for 316 Stainless Steel Seamless Pipes (for the Food and Beverage Industry)
| Item | Standard Number | Applicable Scope / Description |
|---|---|---|
| ASTM A312 | A312 / A312M | Austenitic stainless steel seamless and welded pipes; suitable for food, beverage, and sanitary fluid systems |
| ASTM A213 | A213 / A213M | Stainless steel seamless pipes for boilers, superheaters, and high-temperature fluids; suitable for food steam and process piping |
| ASTM A269 | A269 / A269M | Stainless steel seamless pipes for chemical equipment and general industrial use; suitable for medium- and low-pressure fluid transport and sanitary conditions |
| ASTM A554 | A554 / A554M | Austenitic stainless steel welded pipes; suitable for food and general industrial applications |
| EN 10216-5 | EN 10216-5 | European standard for austenitic stainless steel seamless pipes; used in pressure pipeline systems and sanitary applications |
| JIS G3459 | JIS G3459 | Japanese standard for austenitic stainless steel seamless pipes; used in pressure equipment and sanitary food piping |
| Food Sanitary Standards | FDA / 3-A / EHEDG | Compliant with food and beverage industry hygiene requirements; ensures safe and clean fluid transport |
III. 316 Stainless Steel Seamless Pipe: Chemical Composition and Mechanical Properties
i. Chemical composition (%)
| Element | C | Si | Mn | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| Content Range (%) | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
Note: 316 stainless steel, compared to 304 stainless steel, contains added molybdenum (Mo), which improves its resistance to chloride ion corrosion. It is particularly suitable for liquid transfer in the food, dairy, and beverage industries.
ii. Mechanical properties
| Performance Indicator | Unit | ASTM A312 / A269 316 |
|---|---|---|
| Yield Strength | MPa | ≥ 205 |
| Tensile Strength | MPa | 515–720 |
| Elongation | % | ≥ 40 |
| Hardness (Brinell HB) | HB | ≤ 201 |
| Impact Toughness (Charpy) | J | Typically ≥ 27 (at room temperature) |
IV. Application Media and Selection Recommendations for 316 Stainless Steel Seamless Tubing
i. Applicable Media and Operating Conditions
1. This tubing is suitable for conveying various liquids, including:
- Clean water and process water
- Dairy products: milk, yogurt, etc.
- Juices, beverages, and beer
- Other sanitary fluids: sauces, syrups, alcoholic beverages (low concentration)
2. Applicable Conditions:
- Operating Temperature: Ambient to medium-high temperatures (generally ≤150°C)
- Working Pressure: Low-pressure to medium-high-pressure systems
- Operating Mode: Continuous flow or intermittent start/stop cycles
- Environments: Food processing plants, beverage production lines, dairy processing facilities, pharmaceutical and sanitary fluid systems
3. Not Recommended or Use with Caution:
- Strong acids, strong alkalis, and high-concentration chlorine-containing media (accelerate corrosion)
- High-temperature/high-pressure conditions with corrosive media
- Non-sanitary environments or areas prone to impurity buildup
ii. Why choose 316 stainless steel seamless pipes?
- Excellent corrosion resistance: Contains molybdenum, allowing for long-term use in chlorine-containing environments.
- Hygienic and easy to clean: Polished or acid-washed surface meets food hygiene standards.
- Seamless structure for high pressure resistance: Avoids weld point corrosion and leakage risks.
- Convenient welding and processing: Allows for quick assembly, installation, and maintenance.
- Long service life and low maintenance costs: Suitable for continuously operating production lines.
iii. Selection Recommendations
- Select material based on medium:
General dairy products, juices, beer → 316 seamless pipe suffices
Highly corrosive or high chloride ion environments → Consider 316L or higher-grade stainless steel - Select specifications based on operating conditions:
Medium-low pressure pipelines → Standard wall thicknesses are adequate
Medium-to-high pressure pipelines → Increase wall thickness to enhance safety factor - Select length and end finishes based on application:
Standard lengths (6 m / 5.8 m) for most production lines
Non-standard lengths or beveled ends for specialized equipment connections - Surface treatment options:
Polished (BA/mirror finish) or pickled to ensure hygiene and ease of cleaning
For liquids prone to sedimentation or adhesion, bright annealed finish may be selected
V. 316 Stainless Steel Seamless Pipe Specifications and Dimensions Table
| Nominal Diameter DN / Inch | Outside Diameter OD (mm) | Wall Thickness Schedule / mm | Theoretical Weight (kg/m) | Reference Design Pressure (MPa) | Common Material Grade |
|---|---|---|---|---|---|
| DN10 / 3/8″ | 17.2 | 1.2 (SCH10) | 0.55 | 2.5 | 316 |
| DN15 / 1/2″ | 21.3 | 1.5 (SCH10) | 0.84 | 2.5 | 316 |
| DN20 / 3/4″ | 26.9 | 1.5 (SCH10) | 1.11 | 2.5 | 316 |
| DN25 / 1″ | 33.7 | 2.0 (SCH10) | 1.66 | 2.5 | 316 |
| DN32 / 1 1/4″ | 42.4 | 2.0 (SCH10) | 2.09 | 2.5 | 316 |
| DN40 / 1 1/2″ | 48.3 | 2.0 (SCH10) | 2.38 | 2.5 | 316 |
| DN50 / 2″ | 60.3 | 2.0 (SCH10) | 2.94 | 2.5 | 316 |
| DN65 / 2 1/2″ | 76.1 | 2.5 (SCH10) | 4.09 | 2.5 | 316 |
| DN80 / 3″ | 88.9 | 3.0 (SCH10) | 5.21 | 2.5 | 316 |
| DN100 / 4″ | 114.3 | 3.0 (SCH10) | 6.81 | 2.5 | 316 |
| DN125 / 5″ | 139.7 | 3.5 (SCH10) | 9.09 | 2.5 | 316 |
| DN150 / 6″ | 168.3 | 4.0 (SCH10) | 11.7 | 2.5 | 316 |
| DN200 / 8″ | 219.1 | 5.0 (SCH10) | 18.3 | 2.5 | 316 |
| DN250 / 10″ | 273.0 | 5.0 (SCH10) | 22.7 | 2.5 | 316 |
| DN300 / 12″ | 323.9 | 6.0 (SCH10) | 32.2 | 2.5 | 316 |
VI. Comparison Table of 316 Stainless Steel Seamless Pipe vs. 304 / 316L
| Comparison Item | 304 Stainless Steel | 316 Stainless Steel | 316L Stainless Steel |
|---|---|---|---|
| Chemical Composition | Cr 18%, Ni 8%, no Mo | Cr 16–18%, Ni 10–14%, Mo 2–3% | Cr 16–18%, Ni 10–14%, Mo 2–3%, C ≤ 0.03% |
| Corrosion Resistance | Good; suitable for general food and beverage applications | Excellent; Mo enhances chloride corrosion resistance | Superior; low carbon reduces welding sensitivity, suitable for welded pipes and highly corrosive environments |
| Welding Performance | Good | Good | Better; low carbon reduces risk of post-weld intergranular corrosion |
| High-Temperature Performance | Moderate; can withstand ~870℃ | Stable; can withstand ~870℃ | Stable; can withstand ~870℃ |
| Price | Relatively low; high cost-performance ratio | Medium; slightly higher than 304 | Higher; suitable for highly corrosive conditions |
| Typical Applications | Purified water, fruit juice, low-corrosive beverage pipelines | Fruit juice, dairy, beer, or chloride/acidic beverage pipelines | Highly corrosive service or welded pipelines; food and dairy industry |
Selection Recommendations
- General food and beverage applications → 304 is sufficient, offering low cost and meeting requirements for most clean water and low-corrosion liquid transfer.
- Chlorinated or acidic beverages, dairy products → 316 is recommended for superior corrosion resistance.
- Welding processes or highly corrosive environments → 316L is preferable, as its lower carbon content reduces the risk of intergranular corrosion after welding.
VII. Surface Treatment and Sanitation Requirements for 316 Stainless Steel Seamless Pipes
In the food and beverage industry, piping must not only withstand corrosion and pressure but also meet stringent sanitation standards. Surface treatment and sanitation requirements directly impact the safety of liquid conveyance and ease of cleaning.
i. Common Surface Treatment Methods
| Surface Treatment | Features | Applicable Applications |
|---|---|---|
| Polishing (BA / Mirror) | Smooth, reflective surface; easy to clean | Dairy, fruit juice, beer, and other high-hygiene liquids |
| Bright Annealing (BA) | Maintains bright surface after heat treatment; relieves processing stress | Sanitary pipelines, heat exchanger tubing |
| Pickling | Removes processing oil, scale, and oxidation; improves corrosion resistance | Food processing and beverage process pipelines |
| Mechanical Polishing / Electropolishing | Enhances surface smoothness; reduces micro-cracks and bacterial adhesion | High-hygiene dairy and pharmaceutical pipelines |
ii. Hygiene requirements and standards
| Standard / Requirement | Description | Application |
|---|---|---|
| FDA | Material and surface treatment meet U.S. Food and Drug Administration (FDA) sanitary requirements | Food, beverage, and pharmaceutical fluid transport |
| 3-A | Sanitary design standard ensuring pipelines are cleanable and sterilizable | Dairy and beverage production lines |
| EHEDG | European Hygienic Engineering & Design Group guidelines to minimize microbial contamination risk | Food and dairy process pipelines with high hygiene requirements |
iii. Selection Recommendations
- Liquid Type: For dairy products and high-viscosity juices, a mirror or bright annealed surface is recommended.
- Cleaning Requirements: For CIP (Clean-in-Place) system piping, electropolishing is recommended to reduce residue and bacterial adhesion.
- Hygiene Standards: Ensure that the tubing meets standards such as FDA / 3A / EHEDG to meet export and high hygiene requirements for food processing.
- Easy-to-Clean Design: Choose a seamless tube structure to avoid liquid accumulation in welds and grooves.
VIII. 316 Stainless Steel Seamless Tubing (Food & Beverage Industry) FAQ
i. Can 316 stainless steel seamless pipe transport chlorinated juices or beverages?
Answer: Yes, but pay attention to the chloride concentration in the liquid. 316 stainless steel contains molybdenum, providing stronger resistance to chloride ion corrosion than 304. For liquids with high chloride content or prolonged contact, use the low-carbon 316L variant and ensure the pipe surface is polished or pickled to minimize corrosion risk.
ii. Can the pipes be used for dairy product transportation?
Answer: Yes. 316 seamless pipes feature a smooth surface that facilitates cleaning and complies with food hygiene standards (FDA/3A). We recommend mirror-polished or bright annealed surfaces paired with a CIP (Clean-in-Place) system to prevent dairy residue buildup and microbial growth.
iii. What temperatures can seamless pipes withstand in high-temperature sterilization processes?
Answer: 316 stainless steel can withstand short-term exposure to conventional high-temperature sterilization processes (approximately 120–150°C). If process temperatures exceed this range or involve high pressure, pressure resistance calculations must be performed based on wall thickness and pipe diameter to ensure safe operation.
iv. Does the pipe require regular maintenance? How should it be cleaned?
Answer: 316 seamless pipe is corrosion-resistant with a smooth surface, making maintenance straightforward for routine liquid conveyance. We recommend periodically inspecting the pipe’s exterior and joints. Cleaning can be performed using a CIP system or warm water with food-grade detergent. Avoid prolonged exposure to liquids with high chloride ion content or sediment buildup.
v. How should 316 seamless pipes and welded pipes be selected for food and beverage processing?
Answer:
Seamless pipes: Suitable for medium-to-high pressure applications, acidic or chlorinated beverage pipelines, offering superior hygiene and corrosion resistance.
Welded pipes: Suitable for low-pressure applications, general liquid transfer, or budget-constrained scenarios. However, weld seams require strict treatment to ensure hygiene.
