I. Introduction to Pre-Galvanized Welded Carbon Steel Pipes

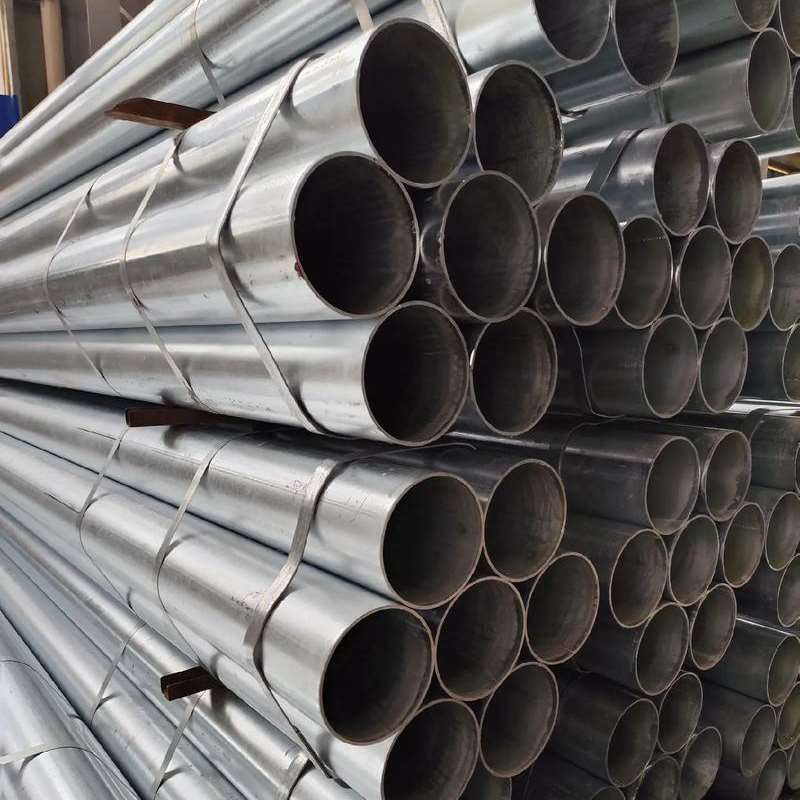

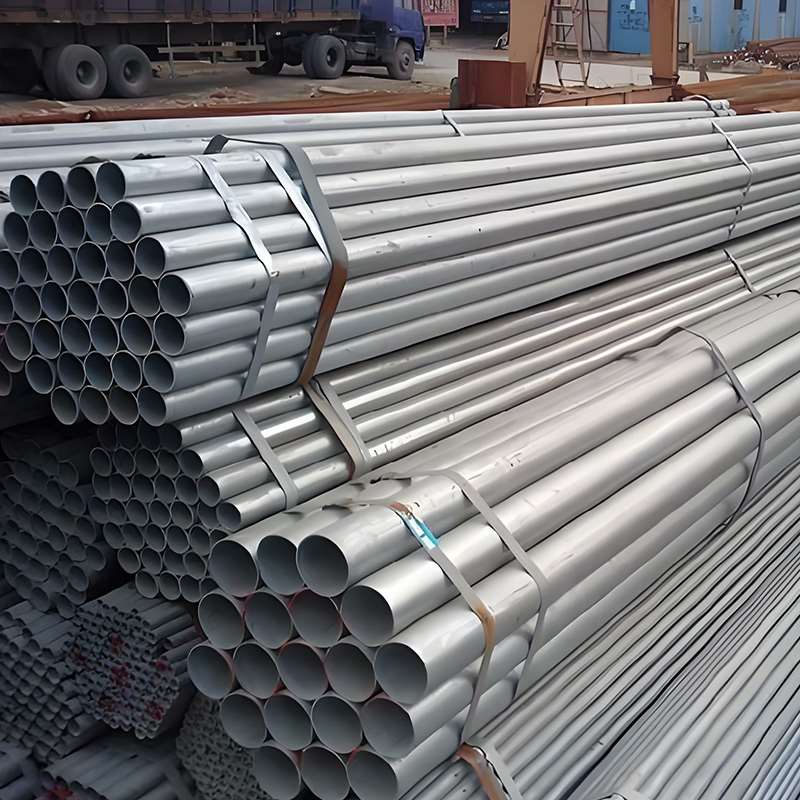

Pre-galvanized welded carbon steel pipes are manufactured by applying an electrogalvanized coating to steel strips prior to pipe forming, followed by welding the strips into a tubular shape.
Key Features:
- Superior Corrosion Resistance: The galvanized coating provides excellent protection against corrosion, making it particularly suitable for humid and highly corrosive environments.
- Lightweight: Utilizing electrogalvanizing technology results in lighter overall pipe weight, facilitating transportation and installation.
- Cost-effectiveness: Compared to hot-dip galvanized pipes, pre-galvanized welded carbon steel pipes offer lower costs, making them suitable for applications with less stringent requirements.
- Good workability: Welding processes ensure pipe stability and sealing integrity, facilitating installation and connection.
- Wide applicability: Extensively used in construction, water supply, gas distribution, agricultural irrigation, and other fields.
Typical Application Areas:
- Municipal Engineering: Primarily used for water pipelines, gas pipelines, heating systems, etc.
- Agricultural Irrigation: Used for agricultural water pipes and irrigation systems.
- Construction Industry: Used in building structures as support pipes, ventilation ducts, etc.
- Industrial Facilities: Suitable for pipeline transportation in low-corrosion environments, such as light industrial pipelines, air conditioning ducts, etc.
Advantages:
- Corrosion Resistance: The galvanized coating effectively resists oxidation corrosion.
- Easy Installation: Pre-galvanized pipes are easy to cut, weld, and install.
- Cost-effectiveness: Lower cost provides high value for money in many applications.
Disadvantages:
- Limited corrosion resistance: Compared to hot-dip galvanized pipes, pre-galvanized pipes offer inferior corrosion resistance and are unsuitable for long-term exposure to extreme corrosive environments.
- Surface damage susceptibility: The thinner zinc coating is prone to damage during handling and installation.
II. Specifications and Dimensions of Pre-galvanized Welded Carbon Steel Pipes
| Nominal Size (DN) | Imperial Size | Outside Diameter (OD, mm) | Common Wall Thickness (mm) | Theoretical Weight (kg/m, reference) |
|---|---|---|---|---|
| DN15 | 1/2″ | 21.3 | 1.2 / 1.5 / 2.0 | 0.60 – 0.90 |
| DN20 | 3/4″ | 26.9 | 1.2 / 1.5 / 2.0 | 0.80 – 1.20 |
| DN25 | 1″ | 33.7 | 1.5 / 2.0 / 2.5 | 1.30 – 1.90 |
| DN32 | 1-1/4″ | 42.4 | 1.5 / 2.0 / 2.75 | 1.80 – 2.90 |
| DN40 | 1-1/2″ | 48.3 | 1.8 / 2.3 / 3.0 | 2.20 – 3.50 |
| DN50 | 2″ | 60.3 | 2.0 / 2.75 / 3.5 | 3.00 – 5.10 |
| DN65 | 2-1/2″ | 76.1 | 2.5 / 3.0 / 3.75 | 4.40 – 6.80 |
| DN80 | 3″ | 88.9 | 2.75 / 3.5 / 4.0 | 5.70 – 8.40 |
| DN100 | 4″ | 114.3 | 3.0 / 3.75 / 4.5 | 8.40 – 12.60 |
| DN125 | 5″ | 139.7 | 3.75 / 4.5 / 5.0 | 12.60 – 16.50 |
| DN150 | 6″ | 168.3 | 4.0 / 4.75 / 5.5 | 16.20 – 21.30 |
| DN200 | 8″ | 219.1 | 4.5 / 6.0 | 24.80 – 32.60 |
| DN250 | 10″ | 273.0 | 5.0 / 6.5 | 33.80 – 43.30 |
| DN300 | 12″ | 323.9 | 5.5 / 7.0 | 42.60 – 54.90 |
III. Product Selection Recommendations for Pre-Galvanized Welded Carbon Steel Pipes
- Consider the usage environment
Indoor, dry environments: Pre-galvanized welded carbon steel pipes suffice
Outdoor, humid environments: Hot-dip galvanized steel pipes are recommended - Consider the application
Water supply/drainage, agricultural irrigation, ventilation ducts: Pre-galvanized welded pipes
Fire protection, long-term outdoor use: Prioritize hot-dip galvanized pipes - Select Outer Diameter and Wall Thickness
Low-pressure, non-load-bearing applications: Choose thin-wall specifications for lower cost
Pressure-bearing or structural requirements: Opt for thicker wall specifications - Confirm Applicable Standards
Export or engineering projects: Select according to ASTM A53 / EN 10255 / ISO 65
General projects: Compliance with conventional standards suffices - Balance Cost and Lifespan
Budget constraints, short service life: Pre-galvanized welded carbon steel pipes
Prioritize longevity and low maintenance: Select hot-dip galvanized pipes
IV. Common Standards and Certifications
Pre-galvanized welded carbon steel pipes adhere to different standards across regions:
ASTM A53: A common U.S. standard for general pipelines and pressure pipelines.
ASTM A500: Applicable to structural steel pipes, particularly in construction engineering.
EN 10255: A European standard primarily used in water supply, gas transmission, and similar fields.
ISO 65: An international standard for steel pipes in fluid conveyance systems.
Quality Certifications: Certifications such as ISO 9001 ensure product manufacturing complies with international standards.
